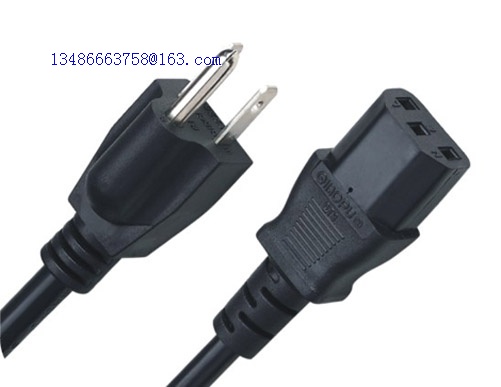

Product name : PSE certified Japanese JIS C 8303 three prong power cord plug
Item : QP6/QT3
 Enlarge Image                   Back
←[Previous Product]


Details:

Product name : PSE certified Japanese JIS C 8303 three prong power cord plug
Item : QP6/QT3
Details :
PSE certified Japanese JIS C 8303 three prong power cord plug.  Rated up to 15A 125V, 12A 125V or 7A 125V.  Built to the JIS-C-8303 class I grounded power cord plug standard.  Our Japanese power cord products are fully molded with a low profile ergonomic design and RoHS and REACH compliant.

Specifications

Items
Details
Connector Standard Japan JIS C 8303 3P plug (same as USA NEMA 5-15P plug)
Maximum Current rating 15A
Maximum Voltage 125V
Number of Poles and Wires 2 poles, 3 wires
Available Wire Thickness 2.0mm² through 0.75mm²
Outer Mold Material 50P PVC
Blade Material Nickel coated Brass
Flamability Rating UL 94V-0
color black is standard but any color available
Temperature Rating minus 40C though plus 75C
Approvals Japan PSE JET project# A09T1531 and Certificate# JET5087-43001-1015
Environmental Certifications RoHS, REACH
Testing Hi-Pot (Dielectric Withstanding Voltage), Polarity (pinout) and Continuity

Available Opposite End Connectors

Standard
Part Number
IEC C13
 (IEC C13) Japan

right angle IEC C13
 (IEC C13) Japan


IEC C5
 (IEC C5) Japan

right angle IEC C5
 (IEC C5) Japan


JIS C 8305 receptacle
 (JIS C 8303) Japan

IEC C19
(IEC C19) Japan


right angle IEC C19
 (IEC C19) Japan

IEC C15
(IEC C15) Japan


right angle IEC C15
 (IEC C15) Japan

IEC C21
 (IEC C21) Japan


right angle IEC C21
 (IEC C21) Japan



Available Wire Styles

Gauge/ # Conductors Cord Type Electrical Rating (Amps/Volts)
0.75mm² VCTF, HVCTF 7/125
1.25mm² VCTF, HVCTF 12/125
2.00mm² VCTF, HVCTF 15/125
