Product name : China CCC certified 3 prong IEC C13
Item : PSB-10/QT3
 Enlarge Image                   Back
←[Previous Product]


Details:

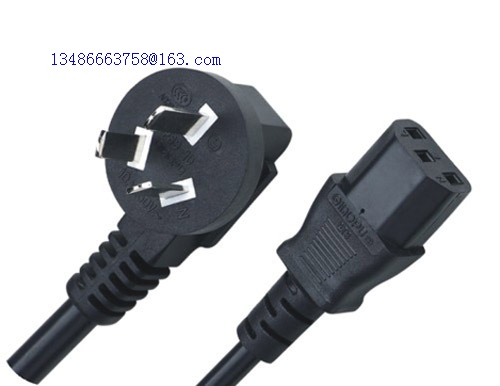

Product name : China CCC certified 3 prong IEC C13 receptacle for power cords
Item : PSB-10/QT3
Details :
China CCC certified 3 prong IEC C13 receptacle for power cords.  Built to the IEC 60320-C13 standard for use in China.  Rated up to 10A 250V.

Specifications

Items
Details
Connector Standard IEC 60320 C13
Maximum Current rating 10A
Maximum Voltage 250V
Number of Poles and Wires 2 poles, 3 wires
Available Wire Thickness 1.5mm² through 0.75mm²
Outer Mold Material 50P PVC
Blade Material Brass
Flamability Rating UL 94V-0
color black is standard but any color available
Temperature Rating minus 40C though plus 75C
Approvals China CCC approval# 2007010101249051
Environmental Certifications RoHS, REACH
Testing Hi-Pot (Dielectric Withstanding Voltage), Polarity (pinout) and Continuity

Available Opposite End Connectors

Standard
Part Number
GB2099 3P standard plug
GB2099 China

GB2099 3P down angle standard plug
 (GB2099) China


GB2099 3P industrial plug
 (GB2099) China



Available Wire Styles

Gauge/ # Conductors Cord Type Electrical Rating (Amps/Volts)
0.75mm² H05VV-F 10/250
1.00mm² H05VV-F 10/250
