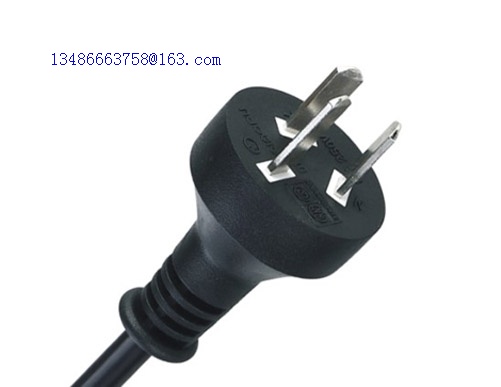

IRAM 2073 Argentina three prong power cord plug with IRAM and UL Argentina certifications. Rated up to 10A 250V. Our IRAM2073 Argentina power cord products are fully molded with a low profile ergonomic design and RoHS and REACH compliant.
Specifications
Items
Details
| Connector Standard |
Argentina IRAM 2073 3 pin plug |
| Maximum Current rating |
10A |
| Maximum Voltage |
250V |
| Number of Poles and Wires |
2 poles, 3 wires |
| Available Wire Thickness |
1.0mm² through 0.75mm² |
| Outer Mold Material |
50P PVC |
| Blade Material |
Nickel coated Brass |
| Flamability Rating |
UL 94V-0 |
| color |
black is standard but any color available |
| Temperature Rating |
minus 40C though plus 75C |
| Approvals |
Argentina UL certificate# 02AR17A01 |
| Environmental Certifications |
RoHS, REACH |
| Testing |
Hi-Pot (Dielectric Withstanding Voltage), Polarity (pinout) and Continuity |
Available Opposite End Connectors
Standard
Part Number
IEC C13
(IEC C13) Argentina
right angle IEC C13
(IEC C13) Argentina
IEC C5
(IEC C5) Argentina
right angle IEC C5
(IEC C5) Argentina
left angle IEC C5
(IEC C5) Argentina
Available Wire Styles
| Gauge/ # Conductors |
Cord Type |
Electrical Rating (Amps/Volts) |
| 0.75mm² |
RVV + H05VV-F |
10/250 |
| 1.00mm² |
RVV + H05VV-F |
10/250 |
