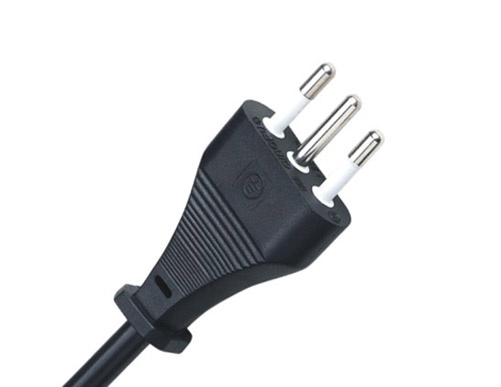

Product name : Italy power cord three prong plug with IMQ certification
Item : D08
 Enlarge Image                   Back
←[Previous Product]


Details:


Product name : Italy power cord three prong plug with IMQ certification
Item : D08
Details :

CEI 23-16 Italy power cord three prong plug with IMQ certification  These Italian power cords are also known as CEI 23-50.  These Italy power cords are certified to the Italian IMQ standards of CEI 23-50 and CEI 23-16. Rated up to 10A 250V.  Built to the Italy CEI-23-16 and CEI 23-50 power cord plug standards.  Our Italian power cord products are fully molded with a low profile ergonomic design and RoHS and REACH compliant.

Specifications

Items
Details
Connector Standard Italy CEI 23-16 3 pin plug
Maximum Current rating 10A
Maximum Voltage 250V
Number of Poles and Wires 2 poles, 3 wires
Available Wire Thickness 1.0mm² through 0.75mm²
Outer Mold Material 50P PVC
Blade Material Nickel coated Brass
Flamability Rating UL 94V-0
color black is standard but any color available
Temperature Rating minus 40C though plus 75C
Approvals Italy IMQ certificate# EL729
Environmental Certifications RoHS, REACH
Testing Hi-Pot (Dielectric Withstanding Voltage), Polarity (pinout) and Continuity

Available Opposite End Connectors

Standard
Part Number
IEC C13
(IEC C13) Italy

right angle IEC C13
 (IEC C13) Italy


IEC C5
(IEC C5) Italy

right angle IEC C5
 (IEC C5) Italy


left angle IEC C5
 (IEC C5) Europe

IEC C19
(IEC C19) Europe


IEC C21
 (IEC C21) Europe

CEI 23-16 receptacle
 (CEI 23-16) Italy



Available Wire Styles

Gauge/ # Conductors Cord Type Electrical Rating (Amps/Volts)
0.75mm² H05VV-F 10/250
1.00mm² H05VV-F 10/250
