Products > Europe VDE Power Cords > > IEC C 13 right angle power cord receptacle with all European country approvals including VDE

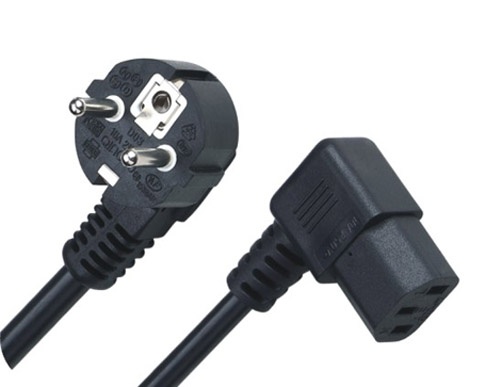

Product name : IEC C 13 right angle power cord receptacle with all European country approvals including VDE
Item : D03/QT-W
 Enlarge Image                   Back
←[Previous Product]


Details:

Product name : IEC C 13 right angle power cord receptacle with all European country approvals including VDE
Item : D03/QT3-W
Details :
IEC C 13 right angle power cord receptacle with all European country approvals including VDE and 12 others.  Built to the IEC 60320-C13 standard for use in various European countries. Rated up to 10A 250V.

Specifications

Items
Details
Connector Standard IEC 60320 C13 right angle
Maximum Current rating 10A
Maximum Voltage 250V
Number of Poles and Wires 2 poles, 3 wires
Available Wire Thickness 1.5mm² through 0.75mm²
Outer Mold Material 50P PVC
Blade Material Brass
Flamability Rating UL 94V-0
color black is standard but any color available
Temperature Rating minus 40C though plus 75C
Approvals ENEC certificate# 40029577, German VDE license# 40005197 and many others
Environmental Certifications RoHS, REACH
Testing Hi-Pot (Dielectric Withstanding Voltage), Polarity (pinout) and Continuity

Available Opposite End Connectors

Standard
Part Number
CEE7/7 Schuko 3 pin down angle plug
CEE7/7 Schuko Europe

CEE7/7 Schuko 3 pin plug
 (CEE7/7 Schuko) Europe


IEC C14 3 pin plug
(IEC C14) Europe

IEC C6
 (IEC C6) Europe


IEC C20 3 pin plug
(IEC C20) Europe



Available Wire Styles

Gauge/ # Conductors Cord Type Electrical Rating (Amps/Volts)
0.75mm² H05VV-F 10/250
1.00mm² H05VV-F 10/250
1.50mm² H05VV-F 10/250
